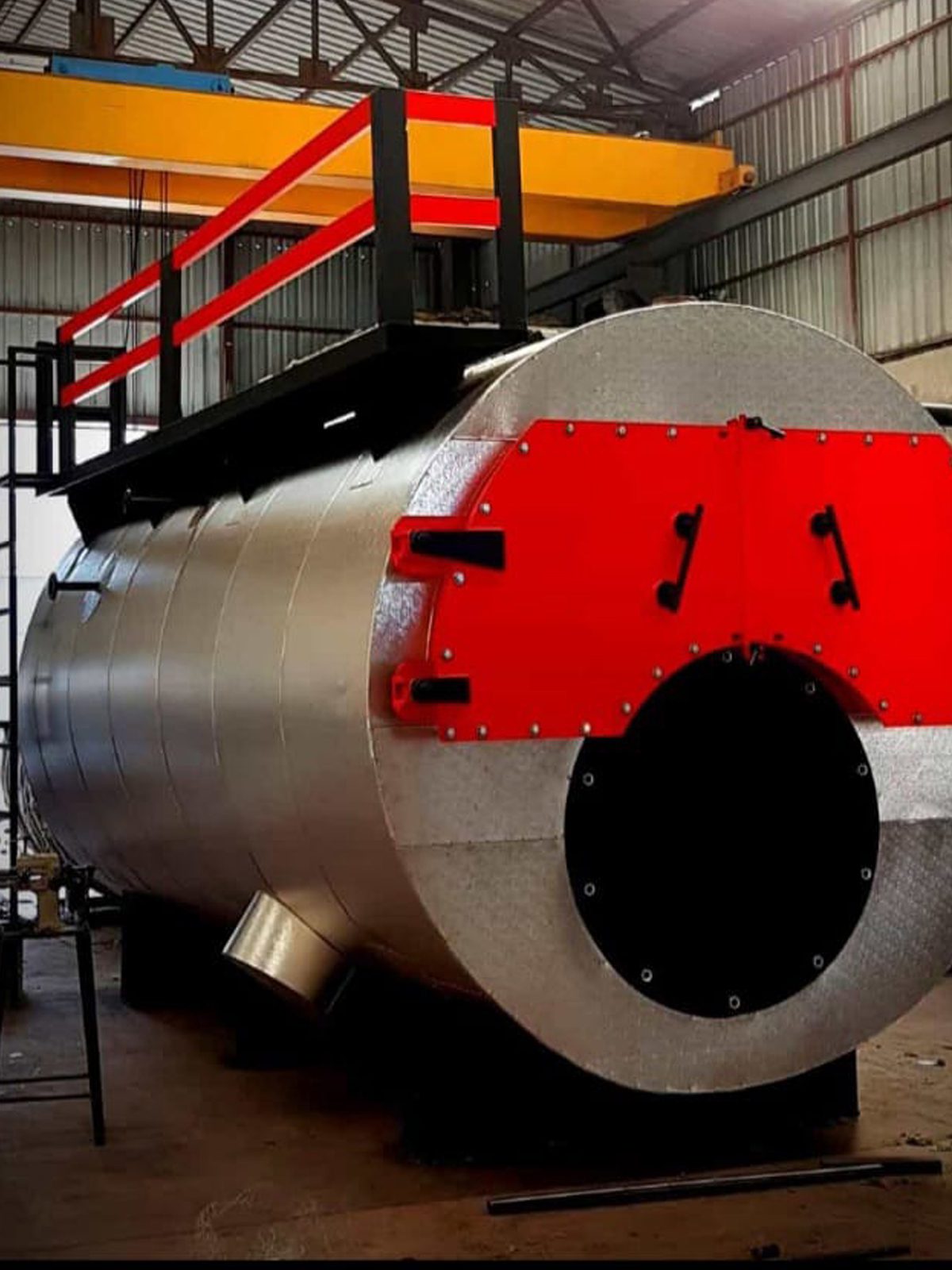

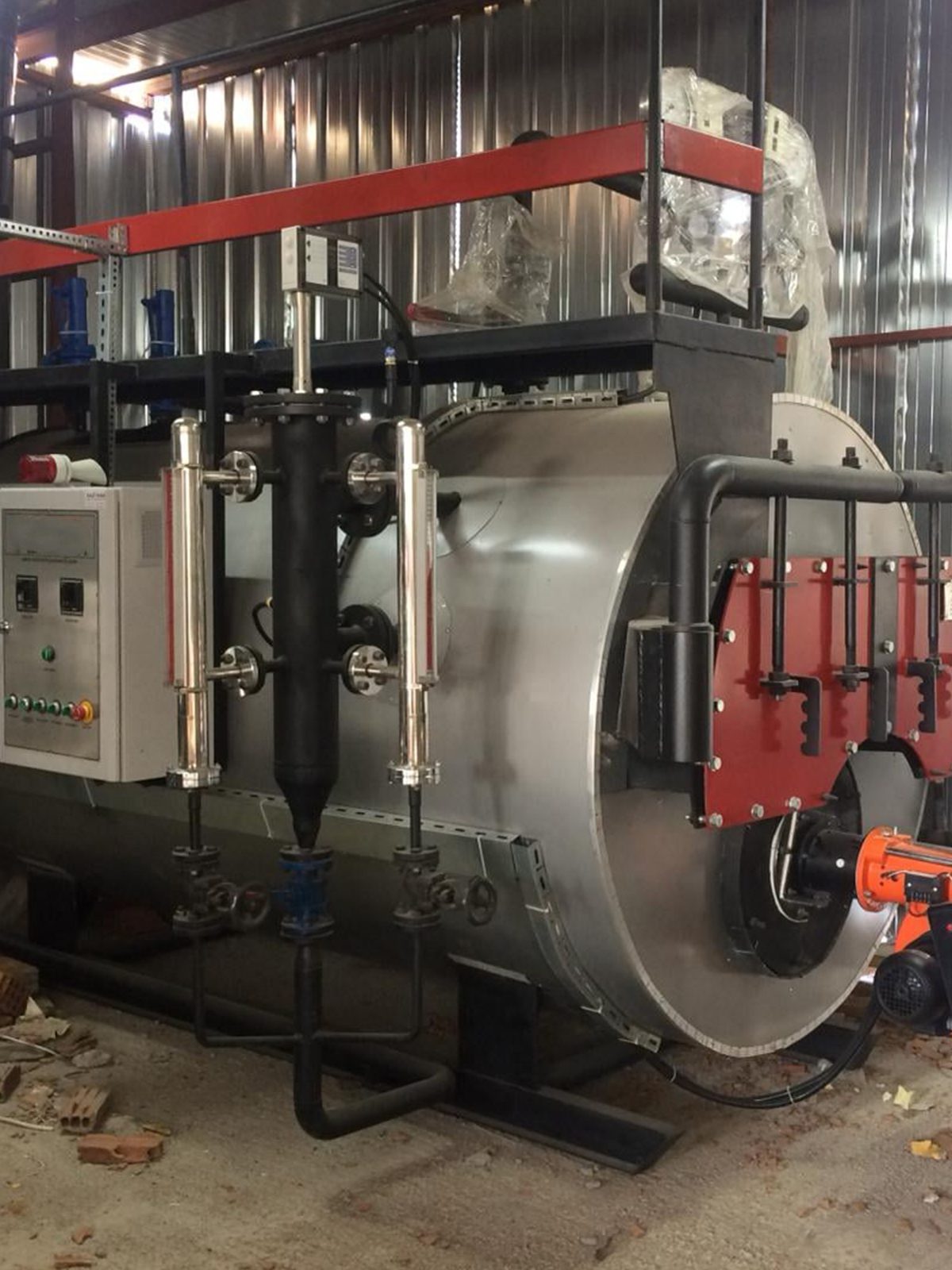

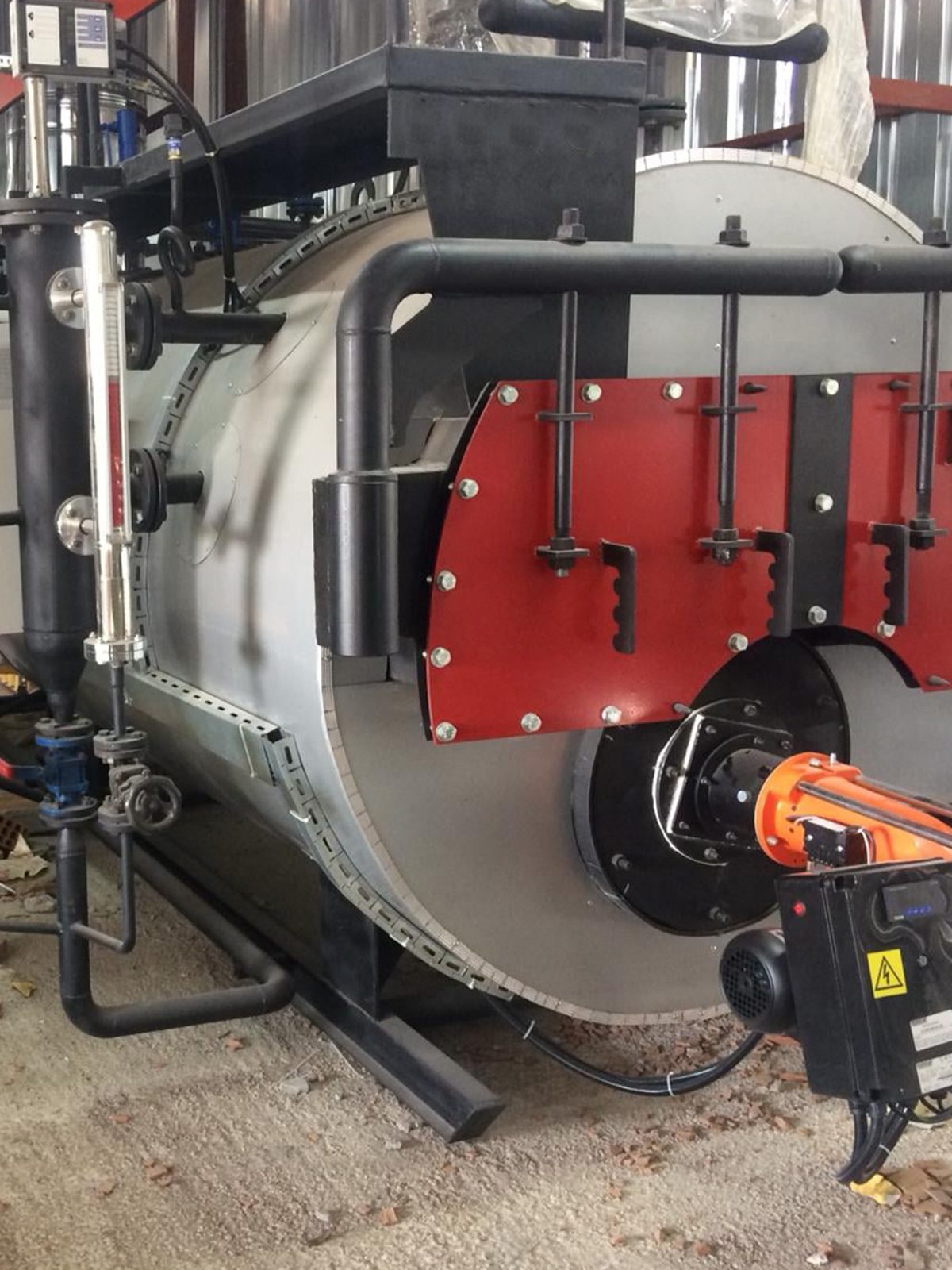

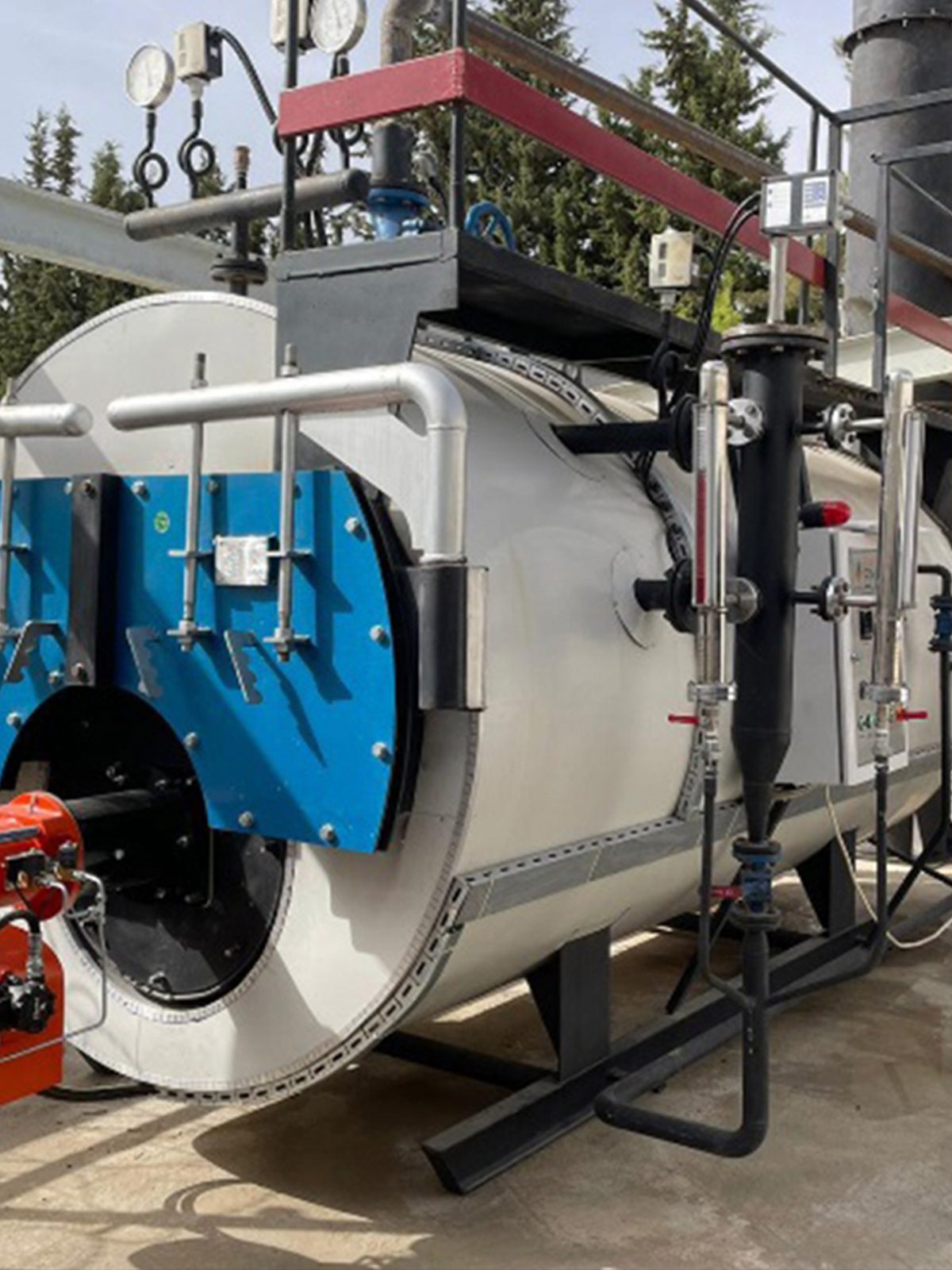

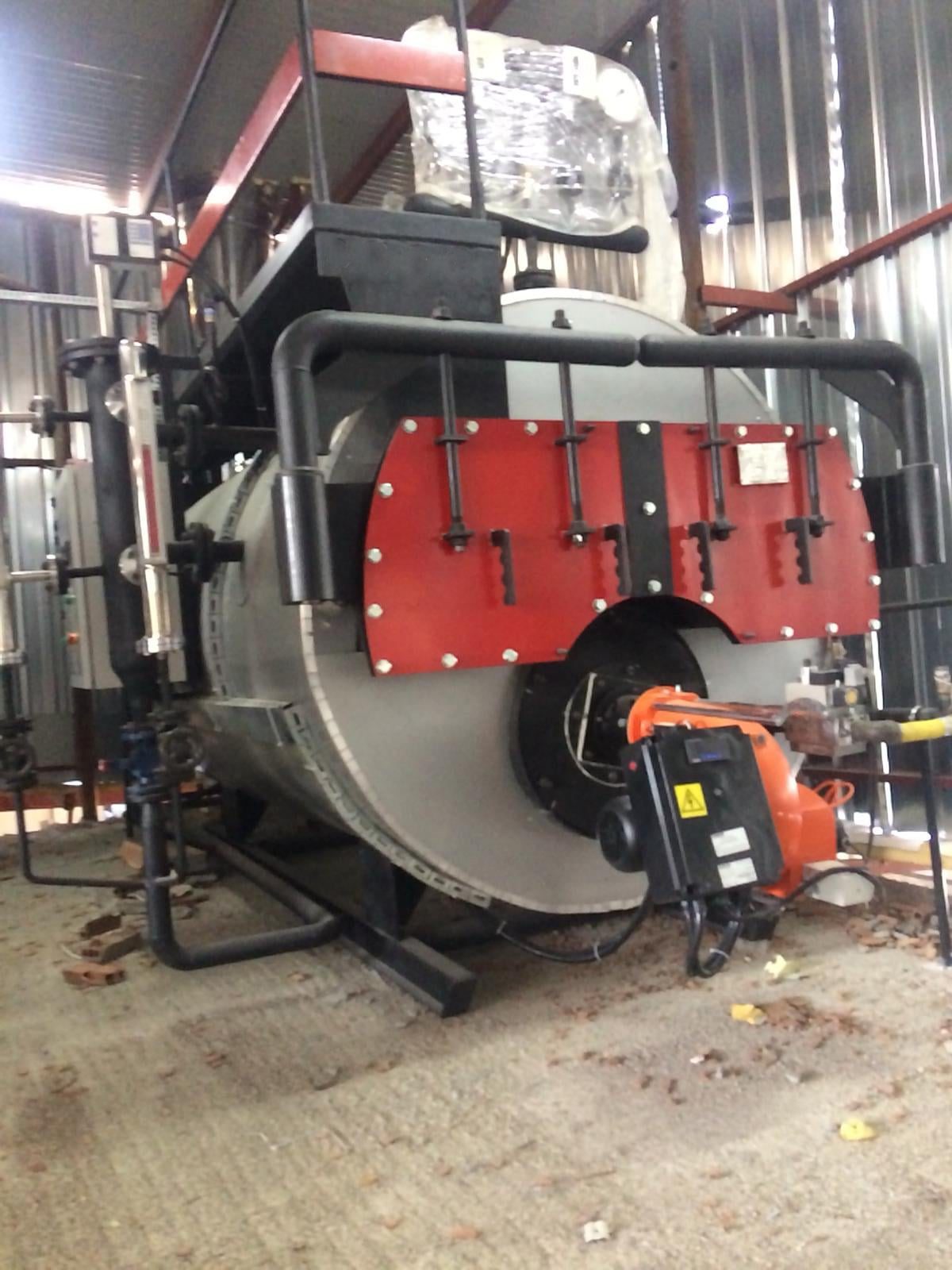

Three Pass, High Pressure Steam Boiler

– Three-pass Steam Boiler

* It is the most used type of steam boiler for medium-sized capacities in industry in our country and in the world.

– Operating pressure between 4-16 bar

* Solid – liquid and gas fueled

* Suitable for instant steam draws with optimum water-steam volume ratio

* Low combustion chamber load (< 1.3 MW/m3) so that combustion can be completed in the combustion chamber

– In this type of steam boiler, the furnace section is usually made with corrugation in large capacities, so that the longitudinal extension of the combustion cell with the effect of heat is met and its resistance against external pressure is increased.

*  Responds to sudden bursts of steam.

*  It has a large evaporation surface and steam volume.

* It has a large and corrugated combustion surface.

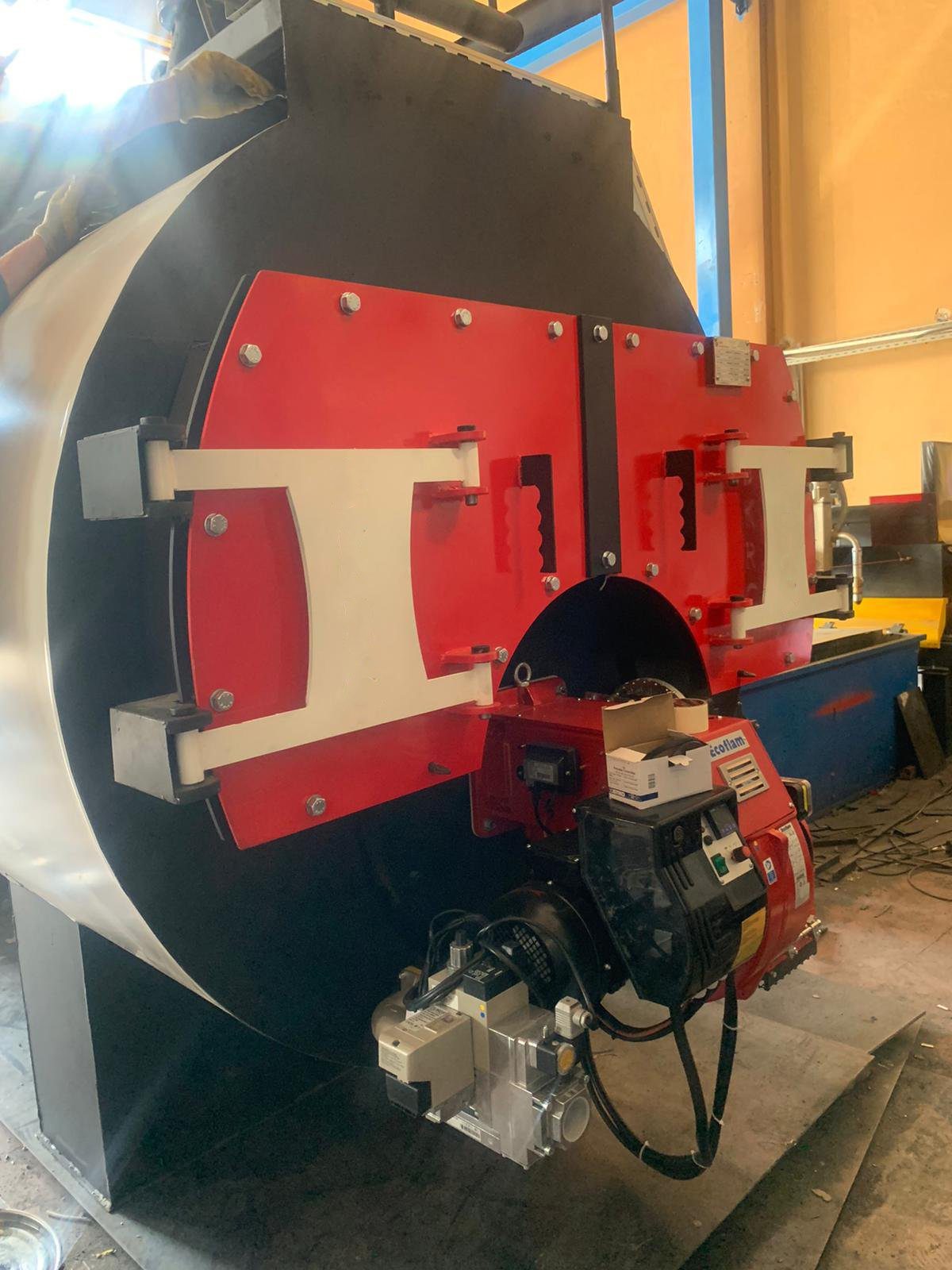

* It can be intervened from the front doors of the Steam Boiler to the smoke pipes, from the large-diameter explosion cover behind it to the hell side, through the man hole on the boiler and at least two hand holes on the water side.

* Our maximum steam boiler production, production capacity; 21.600kg/h is limited to 25 Atu steam.
